GPU

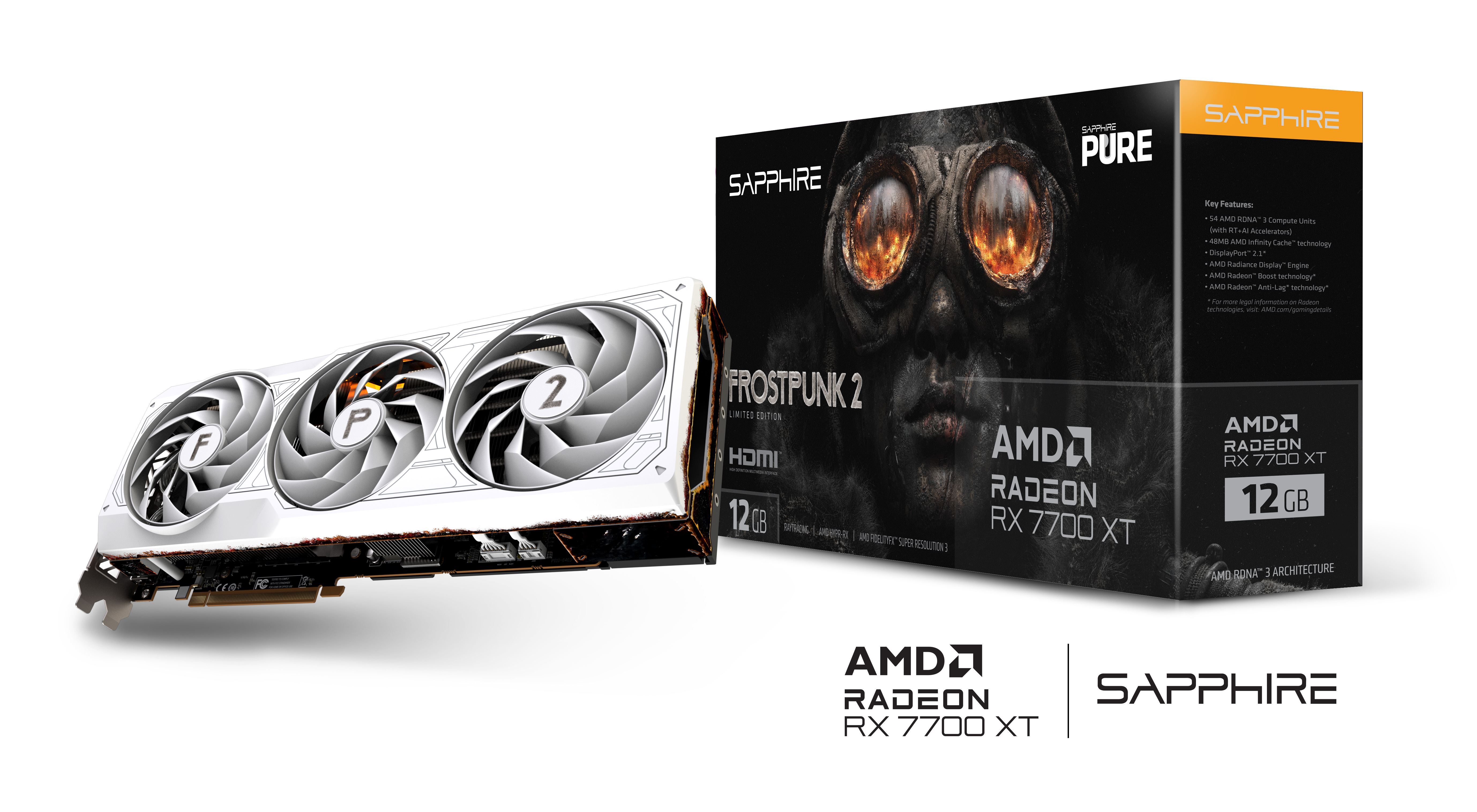

AMD Radeon™ RX 7700 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture
Engine Clock
Boost Clock Up to 2584 MHz
Game Clock Up to 2226MHz
Boost Clock is the maximum frequency achievable on the GPU running
bursty workload. Boost clock achievability, frequency, and sustainabilty
will vary based on several factors, including but not limited to
thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming
applications, set to typical TGP(Total Graphics Power). Actual
individual game clock results may vary.
Stream Processors
3456
Compute Units
54 CU (with RT+AI Accelerators)
Infinity Cache
48MB
Ray Accelerators
54
Memory Size/Bus
12GB/192 bit GDDR6
Memory Clock
18 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI: ™ 7680×4320
DisplayPort 2.1 7680×4320
Interface
PCI-Express 4.0 x16
Output
2x HDMI:
2x DisplayPort
BIOS Support
UEFI
Game Index
1440P
Frostpunk 2 Features
Metal Backplate with Frostpunk 2 Graphics
3 Keyboard Keycaps
3 Enamel Pins
Frostpunk 2 Deluxe Edition Game Code
Product package with Frostpunk 2 theme
ARGB SAPPHIRE Logo (set to Orange default colour)
Sapphire Features
Premium Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipe
Intelligent Fan Control
Precision Fan Control
Metal Backplate
ARGB SAPPHIRE Logo
Two-Ball Bearing Fans
Angular Velocity Fan Blade
TriXX Supported
TriXX Boost
Accessories Bundled
White Graphics Card Supporter
AMD Features
DirectX 12 Ultimate Support
DisplayPort™ 2.1 Support
AMD Radiance Display™ Engine
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software Adrenalin Edition™ technology
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD FreeSync™ Technology
Cooler Type
3 Fans
Form Factor
2.5 slot, ATX
Dimension 320(L)X 128.75(W)X 52.57 (H)mm
Power Consumption
240W Total Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
Minimum 700 Watt Power Supply:
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot
available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
İşlemci Tipi AMD
Grafik İşlemci RX 7700
Bellek Arayüzü 192 bit
Ram: (Sistem Belleği): 12 GB
Bellek Tipi: GDDR6
HDMI: 2
DVI: -D Yok
DVI: -I Yok
DP (Display Port): 2
mDP (mini Display Port) Yok
VGA (Analog D-Sub: ) 1
DirectX 12
Güç Gereksinimi 500W
Form Faktör ATX
Satış Garanti Süresi (ay): 24
EAN: 4895106295421
