Parlaklık: ANSI lümen
5000
Yerel
Çözünürlük: 4K UHD (3840×2160)
Doğal En/Boy Oranı
169
Kontrast Oranı: (FOFO)
30000001
Ekran Rengi
30-(1,07 milyar renk)
Işık Kaynağı
Lazer
Işık Kaynağı Ömrü
20000 saat
Optik
Atma Oranı
1.36 ~ 2.18
Yakınlaştırma Oranı
1,6x
Lens
F/# = 1.81 ~ 2.1,f = 14.3 ~ 22.9 mm
Yansıtma Ofseti (Tam Yükseklik)
0%
Kilit Taşı Ayarı
1D, Dikey ± 30 derece
Dikey Lens Kaydırma
Vertical -60%~ +60% Horiztonal -23%~ +23%
Resim
Kyt 709 Kapsama
0.85
Resim Modları
Parlak, DICOM SIM, HDR, Sunum, sRGB, Kullanıcı 1, Kullanıcı 2, Canlı
Uyumluluk: Giriş Gecikmesi
51 ms (
[email protected])
Çözünürlük: Desteği
VGA (640 x 480) ila 4K UHD (3840 x 2160)
G/Ç Arayüzü
PC girişi (D-sub 15pin)
(x1), PC in-1
Monitör çıkışı (D-sub 15pin)
(x1)
HDMI: girişi
(x3),
HDMI: -1 (2.0a/HDCP2.2),
HDMI: -2 (1.4b/HDCP1.4),
HDMI: -3
(1.4a/HDCP1.4)
Monitör çıkışı (
HDMI: )
(x1)
HDBaseT (RJ45)
(x1), Kontrol/Video/Ses
USB : Type A
(x1),
USB : Type A-1 (2.0/Güç Kaynağı2.0A)
USB : Type Mini B
(x1),
USB : Type Mini B-1(hizmet)
RS232 girişi (DB-9pin)
(x1)
Kablolu
Uzaktan Kumanda: Girişi (3,5 mm Mini Jak)
(x1)
DC 12V Tetikleyici (3,5 mm Jak)
(x1)
Ses
Hoparlör
(x1), 10 W
Ses girişi (3,5 mm Mini Jak)
(x1), 1
Ses çıkışı (3,5 mm Mini Jak)
(x1), 1
Çevre
Çalışma Sıcaklığı: 0~40?
Güç Kaynağı
AC 100 ila 240 V, 50/60 Hz
Tipik
Güç Tüketimi: (110V)
450W
Bekleme Durumunda
Güç Tüketimi: <0,5W
Ağ Bekleme Durumunda
Güç Tüketimi: <2W
Aksesuarlar
Pil ile
Uzaktan Kumanda: RCA011
Güç Kablosu (bölgeye göre)
x1 (1.8M)
Kurulum Kılavuzu
1 (8L)
Garanti Belgesi (bölgeye göre)
Evet
Objektif kapağı
Evet
Toz Önleyici Filtre
(
Standart: ), Yes
Evrensel Tavana Montaj
Yes, CMG3
Boyut ve Ağırlık
Boyutlar: (GxYxD) (mm)
490 x159 x380
Net Ağırlık (kg)
9.1
Yansıtma Sistemi
Yansıtma Sistemi
DLP
Optical
Throw Ratio
1.36 ~ 2.18
Zoom Ratio
1.6x
Lens Control
Manual Zoom and Focus
Lens Shift
Manual lens shfit,
V ±60 %; H ±23 %
Keystone Correction
1D keystone,
V ±30 degree
Projection Size
30" ~ 300"
Display
Projection System
DLP Single 0.47" XPR 4K
DMD type
DC3 DMD Chip
Resolution
4K UHD (3840 x 2160)
Brightness
5000 ANSI Lumens
Contrast Ratio*
3,000,0001
Display Color
30 Bits (1.07 billion colors)
Aspect Ratio
Native 169 (5 aspect ratio selectable)
Light Source
Laser
Light Source Life*
20,000 hrs
Audio
Built-in Speaker
10W
Special Feature
Security(anti-theft)
Security Bar
Feature
Feature
4K UHD, HDR, Projector/ Remote Control ID Setting, Auto High Altitude
Mode, HDBaseT, LAN Control, 360°Projection, Dust-Proof Filter
Connectivity

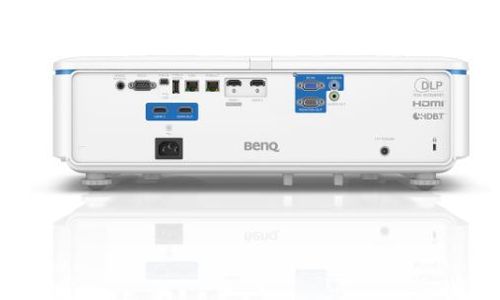

I/O Port
Wired Remote In x1
RS232 In (D-sub 9pin, male) x1
USB : Mini-B(Service) x1
USB : TypeA(5V/2A power) x1
LAN Port(RJ45 for Network control) x1
HDBaseT x1
HDMI: In (HDCP2.2) x1
HDMI: In x2
HDMI: Out x1
PC In x1
Monitor out (D-sub 15pin,Female) x1
Audio in(mini jack) x1
Audio out (mini jack) x1
12V Trigger x1
IR Receiver(Front) x1
IR Receiver(Rear) x1
Kensington anti-theft lock slot x1
Compatibility
Resolution Support
Up to 3840x2160p
Horizontal Frequency
15K ~135KHz
Vertical Scan Rate
24~120Hz
HDTV Compatibility
SDTV(480i/576i), EDTV (480p/576p), HDTV (720p, 1080i 60/50, 1080P
50/60/30/25/24, 3840x2160p 60/50/30/25/24)
Power
Standby Power Consumption
Normal < 0.5W, Network <2W
Power Consumption(Max/Normal/Eco)
Max 585W/ Normal 520W/ Eco 390W
Dimension and Weight
Product Dimensions (WxHxD)
490.0x159.0 x 380.0mm
Product Weight
10.1 kg
Operation Condition
Operating Temperature
0 ~ 40oC
Noise Level (Normal/Eco)
40/38 dBA
Accessories
Accessories (Standard)
Power Cord
Remote control (RCA011)
Lens cover
AAA Batteryx2
Installation Guide/Regulatory Statement(Combined)
Warranty card(by sku)
Anti-dust Filter
Accessories (Optional)
Ceiling mount (CMG3)
OSD
On Screen Display Language
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/
French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/
Korean/ Norwegian /Persian/ Polish/ Portuguese/ Romanian/ Russian/
Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional
Chinese/ Vietnam (30 languages)
InstaShow Host
Power
Supply: Işık Gücü : (Lumen) 5000,0
Işık Gücü : Aralığı 5000+ Ansilümen
Çözünürlük: 3840X2160
Kontrast Oranı: 3,000,0001
Lamba Ömrü (saat): 6000
manual zoom YOK
Fan gürültüsü (dB) 29
Girişler: HDMI: ,USB
Kablosuz Bağlantı: : YOK
Bütünleşik Hoparlör VAR
Uzaktan Kumanda: VAR
Satış Garanti Süresi (ay): 24
EAN: 4718755067471
